Sold Out Used cnc lathe cmz
  • Fully disassembled and reconstructed by CMZ
  • Servo driven turret with hydraulic clamped curvic coupling
  • Used machine in perfect condition

TBI-520-B-ServoT nº347

FULLY DISASSEMBLED AND RECONSTRUCTED

At CMZ we have our own catalogue of used lathes. Lathes that we disassembled and reconstruct from scratch in our premises. That way, we sell quality second hand CNC machines that have passed through a careful reconstruction process. The machine has been in use by one single customer since we delivered it on the 6th December 2000. The customer has replaced this lathe with a new lathe from the CMZ brand, the TD-35-Y-1350 model. We collected the machine on the 13th January 2020. The price of this second hand lathe is very competitive. Please contact us for more information.

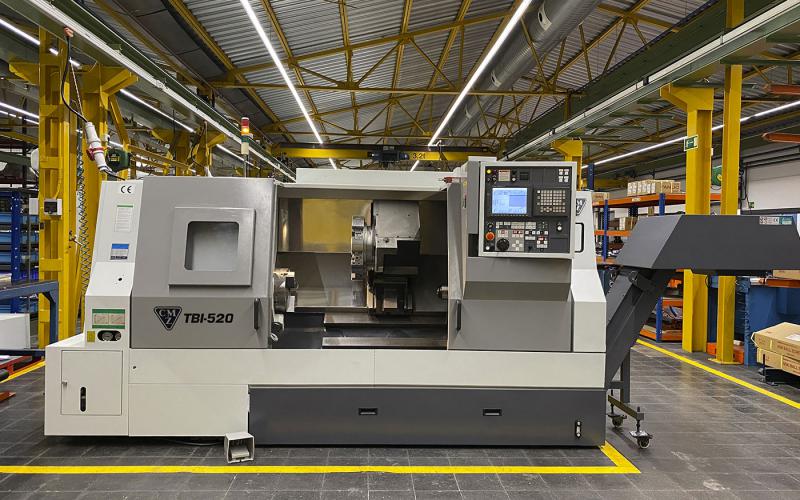

Overall view of the machine

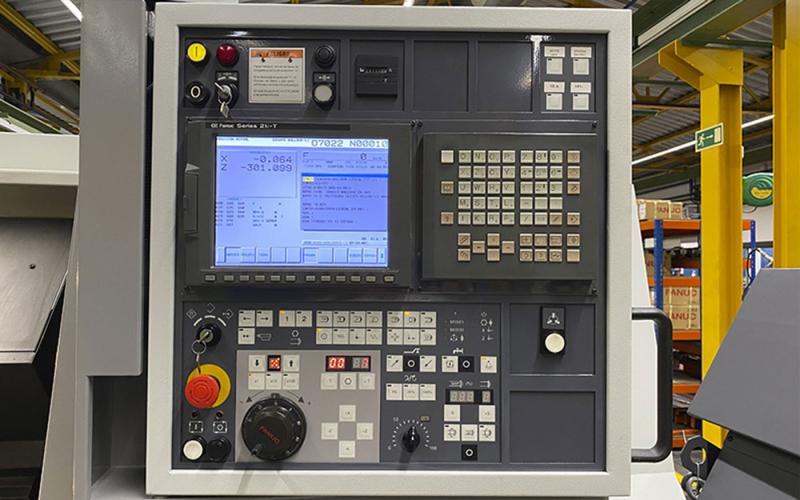

Close-up of FANUC 21iT

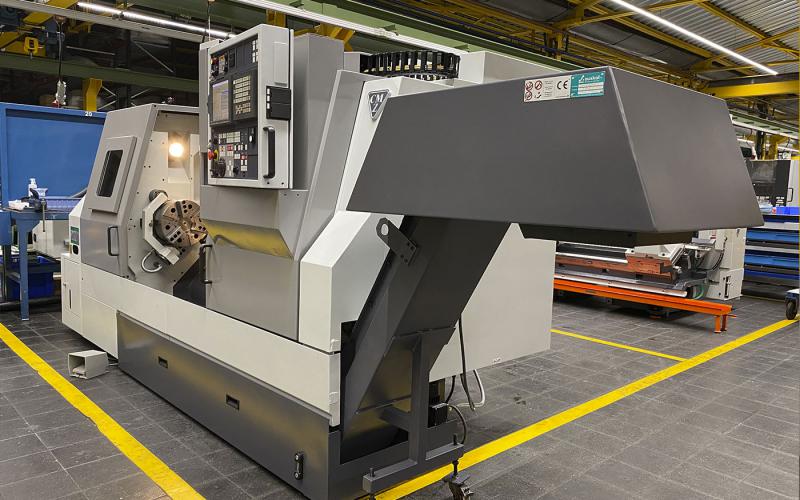

Close-up of the chip conveyor

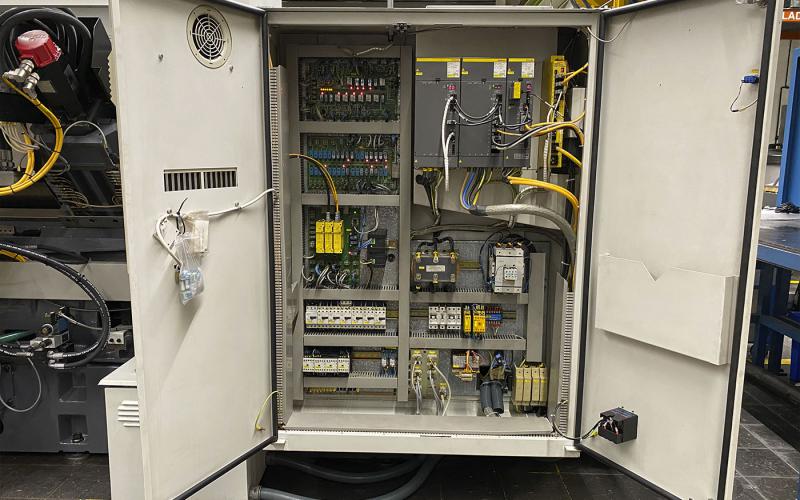

Close-up of the electrical enclosure

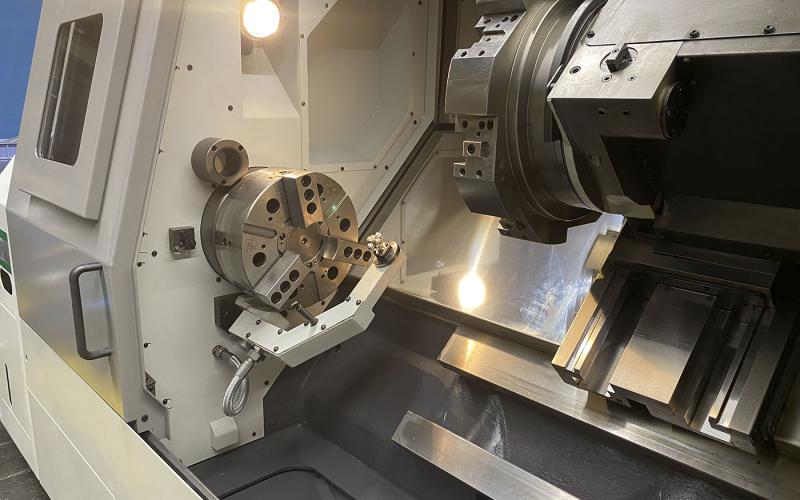

Close-up of chuck and presetter

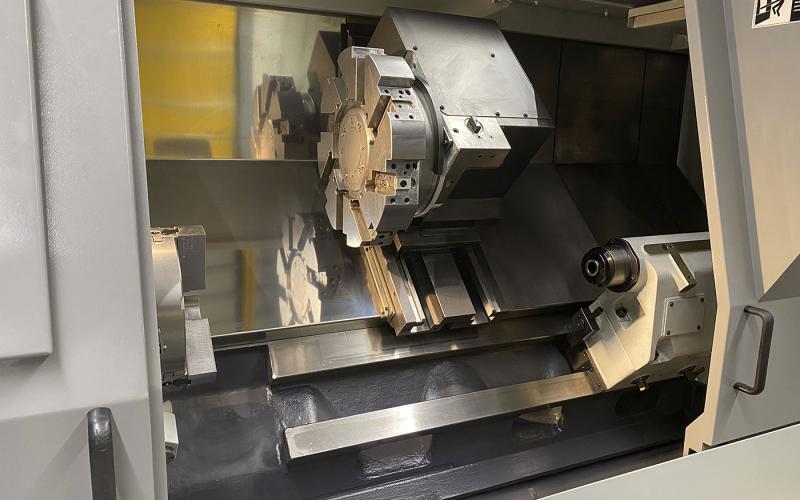

Reconstructed Close-up of Tailstock guides

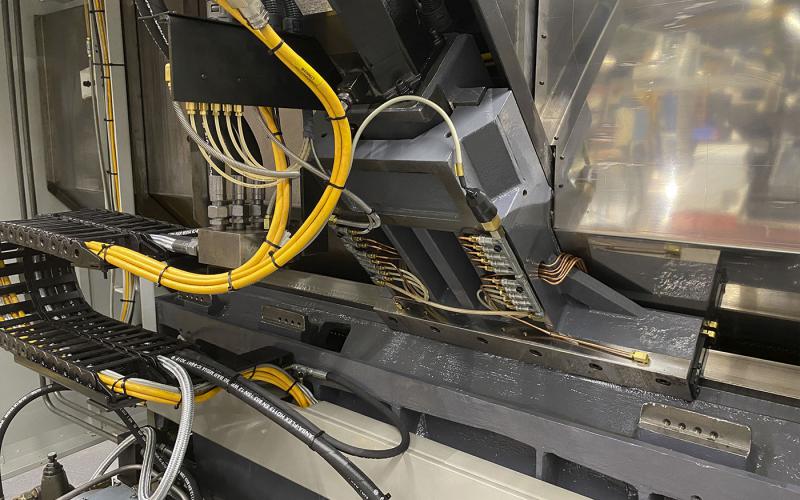

Almost finished. Close-up of Z axis guides

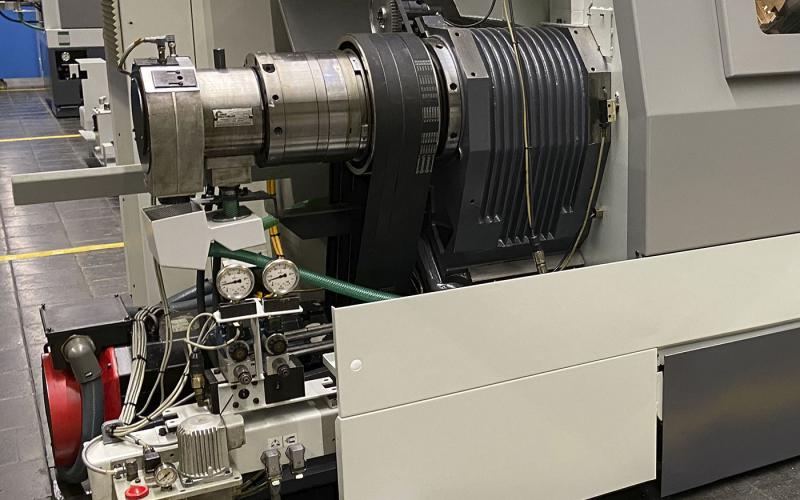

Machines almost finished - Detail of the spindle

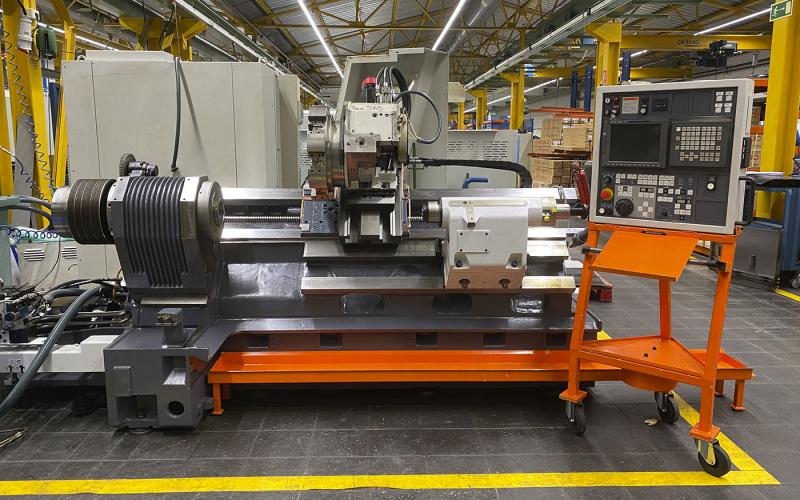

Assembling the wiring

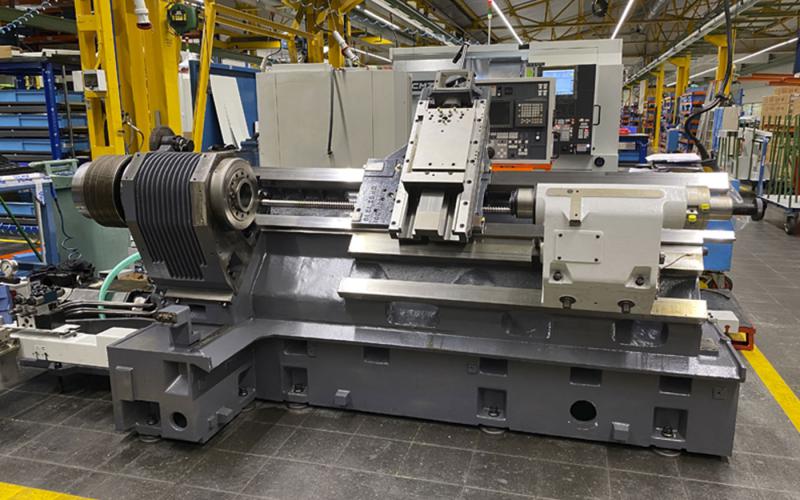

Assembling the new machine from scratch

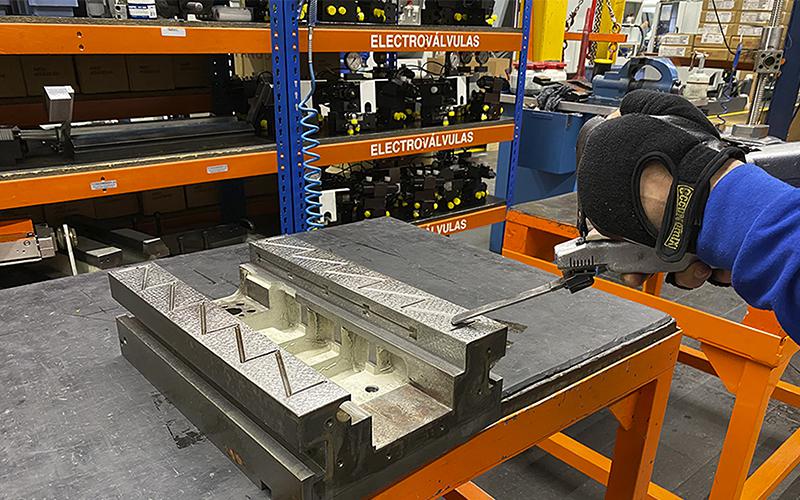

Carriage X being scraped down

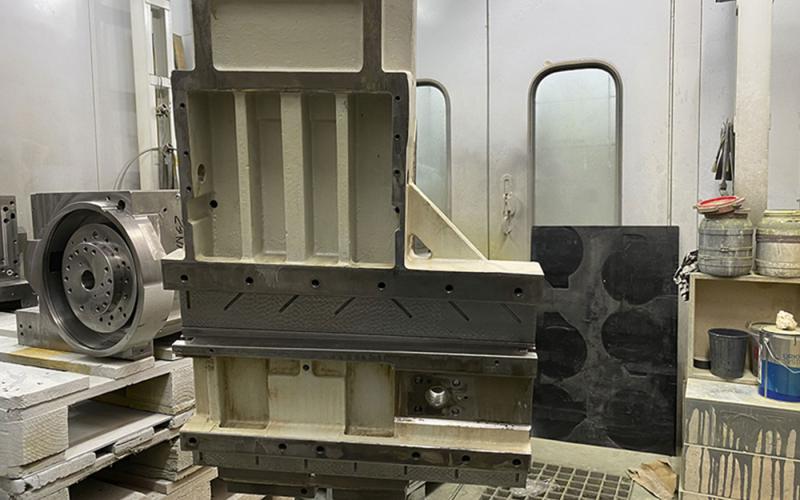

Carriage Z scraped down and awaiting painting

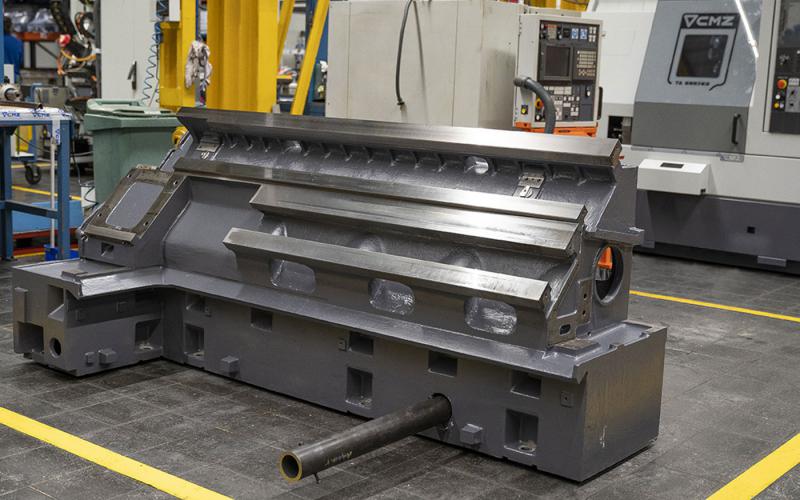

Bed disassembled and painted

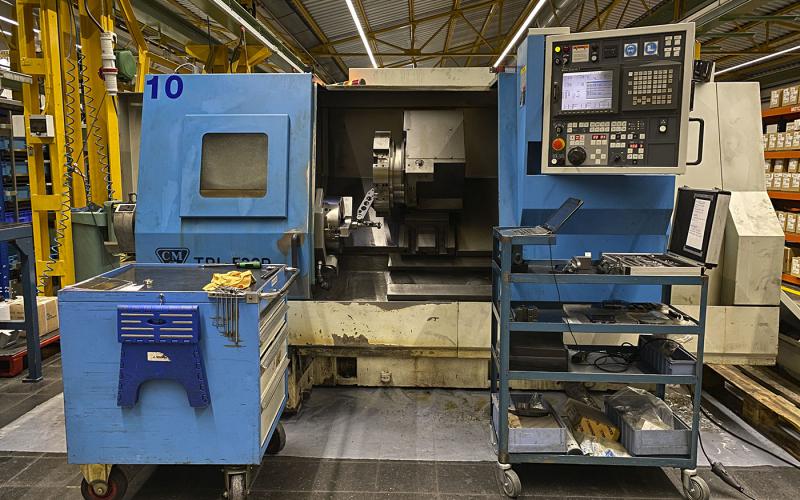

Checking over before dismantling

HIGHLIGHTS

  • Second hand CNC lathe: TBI-520-B-ServoT nº347 with FANUC 21iT control colour
  • Date of manufacture 6th April 2000
  • 8-position servo turret
  • Fitted with NEW standard toolholder
  • Autoblok chuck, model BHD 315
  • Presetter
  • Chip conveyor
  • Stoplight
