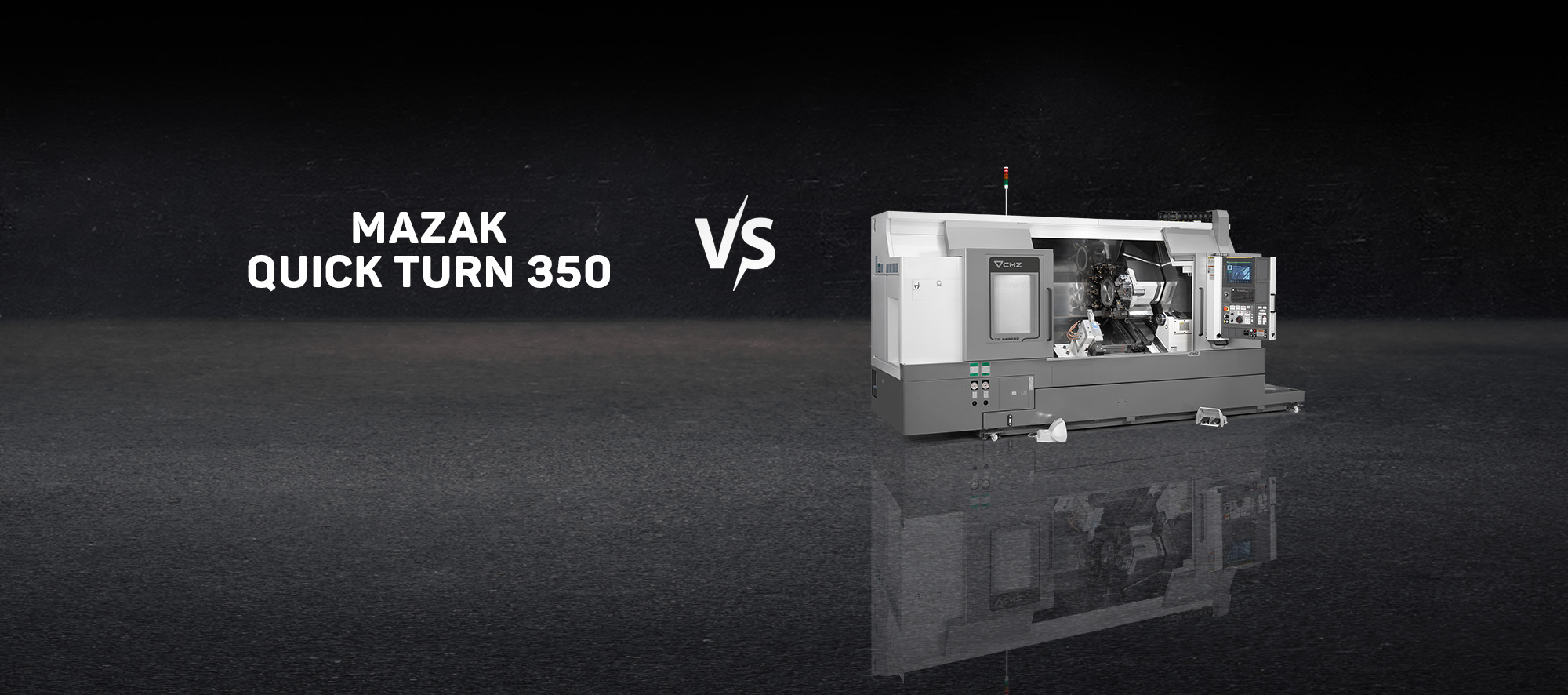

MAZAK QUICK TURN 350 VS. CMZ TD
TECHNICAL SPECIFICATION COMPARISON
-
QUICK TURN 350
CNC single turret, flat bed lathe with 102 mm bar capacity - Linear guides
- Built-in motor in the spindle
- Built-in motor in the driven tool
- Maximum turning diameter = 457 mm
- X travel = 279 mm
- Y travel= 152.4 mm
- Z travel= 670 / 1607 / 2121 mm
- Spindle - 808 Nm and 30 kW
- Sub-Spindle - 463.7Nm and 26 kW
- Turret - 4000 rpm, 7.4 kW, 69 Nm (Opt.)
- Gantry loader not available
-
CMZ TD 35
CNC single turret, slant bed lathe with 101 mm bar capacity - Prismatic guides
- Built-in motor in the spindle
- Built-in motor in the driven tool
- Maximum turning diameter = 550 mm
- X travel = 380 mm
- Y travel= 140 mm +80 /-60 mm
- Z travel= 800 / 1350 / 2200 / 3300 mm
- Spindle - 1500 Nm and 55 kW
- Sub-Spindle - 900Nm and 35 kW
- Turret - 12,000 rpm, 13 kW, 105 Nm
- Gantry Loader with 50 kg capacity
MAZAK QUICK TURN 350 VS. CMZ TD
DO YOU WANT TO ACCESS THE FULL TECHNICAL DETAILS?
HIGH PRECISION CNC LATHE
COMPARE DMG NLX 2500 WITH CMZ TD
DISCOVER THE MAIN DIFFERENCES BETWEEN THESE LATHES
The Mazak QUICK TURN 350 and the CMZ TD 35 are lathes intended for the same type of part, they can be described as competitors. Nevertheless, analysis of their features shows there are technical differences.
The Mazak QUICK TURN 350 is a flat bed lathe. There is a 60 degree angle between the spindle and the X axis. In contrast, the CMZ TD 35 is a slant bed lathe with a 90 degree angle between the spindle and the X axis.
The carriages of the Mazak QUICK TURN 350 rest on linear roller guides. In contrast, the CMZ TD 35 is fitted with metal on metal contact prismatic guides. That is to say, a ground surface is permanently in contact with a hand scraped surface.
The spindle and the sub-spindle in the CMZ TD 35 have more torque than the Mazak QUICK TURN 350. In addition the CMZ TD 35 has higher specifications in the turret: it reaches 12,000 rpm, 13 kW and 105 Nm.
As regards automation, with the CMZ TD 35 it is possible to automate part loading and unloading with the gantry loader. The Mazak QUICK TURN 350 does not have that option.
