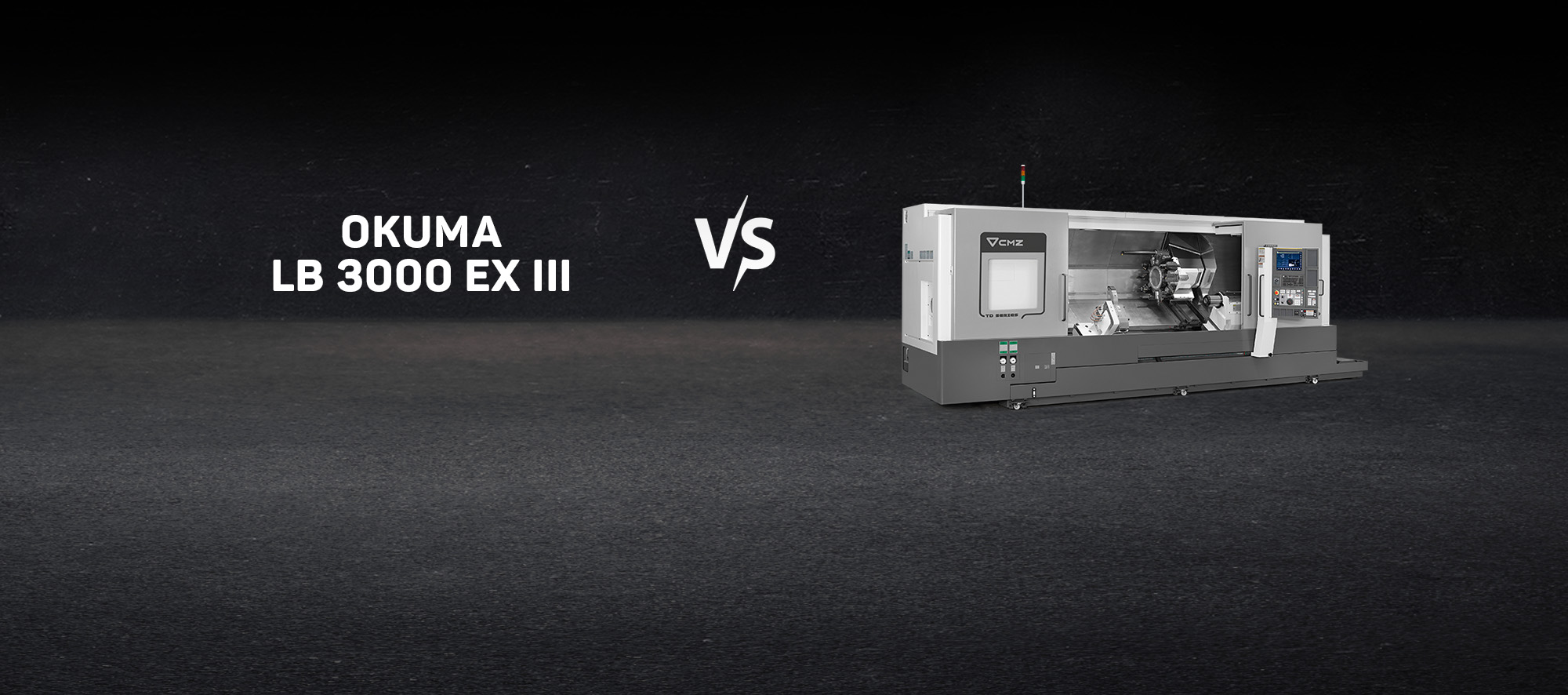

OKUMA LB3000 EX III VS. CMZ TD
TECHNICAL SPECIFICATION COMPARISON
-
LB 3000 EX III
Single turret CNC lathe - High precision CNC lathe and prismatic guides
- Bar capacity Ø80, Ø91, or Ø110
- Maximum turningØ 410 mm without Y axis, or 340 mm with Y axis
- X travel = 260 mm
- Y travel = +70 /-50 mm
- Z travel (with Y axis)= 510 or 1010 mm
- Fast feeds (m/min): X=30, Y=15, Z=30
- Spindle with integrated motor
- Standard spindle 427 Nm / 30 kW (30 min)
- Sub-spindle 109 Nm / 11kW (20 min)
- 12-position turret
- 6,000 rpm turret
- Driven tool 40.4 Nm and 71 kW (25 min)
- Gantry Loader not available on European or American markets
-
CMZ TD-30
Single turret CNC lathe - High precision CNC lathe and prismatic guides
- More bar capacity options: Ø52, Ø66, Ø82, Ø95, Ø127, Ø180 and Ø192
- Maximum turning Ø= 550 mm
- X travel = 380 mm
- Y travel = +80 /-60 mm
- Z travel = 800 or 1350 mm
- Fast feeds (m/min): X=30, Y=15, Z=30
- Spindle with integrated motor
- TD-30 spindle: 1020 Nm / 42 kW (max)
- Sub-spindle 366 Nm / 22 kW (max)
- Turret with the option of 12 or 16 positions
- 12,000 rpm turret
- Driven tool 105 Nm / 13 kW (max)
- 3-axis Gantry Loader max weight 100kg
OKUMA LB3000 EX III VS. CMZ TD
DO YOU WANT TO ACCESS THE FULL TECHNICAL DETAILS?
HIGH PRECISION CNC LATHE
COMPARE OKUMA LB3000 EX III WITH CMZ TD
DISCOVER THE MAIN DIFFERENCES BETWEEN THESE LATHES
The CMZ TD and the LB3000 EX III are CNC lathes in the same segment but analysis of their features shows significant differences.
The CMZ TD has higher torque and power in all the spindle ranges in relation to the LB3000 EX III. In the TD-55 model, the maximum torque available is 3,684 Nm (max). The TD sub-spindle reaches 42kW, whereas the LB3000 EX III reaches 11 kW (20 min).
The CMZ TD turret has more features than the turret on the LB3000 EX III. There are between 12 or 16 positions to choose from and it has an integrated motor which reaches 12,000 rpm continuous power.
Another advantage of the CMZ TD is automation, because it can be purchased in any market with a Gantry Loader with capacity for 2 x 10 kg parts or 2 x 50 kg parts.
