Sold Out TB-67+GL6 Nº354
  • Fully disassembled and reconstructed
  • Equipped with a gantry robot for parts up to 3kg
  • Used machine in very good condition

TB-67+GL6 nº354

FULLY DISASSEMBLED AND RECONSTRUCTED BY CMZ

At CMZ we disassemble and reconstruct our customers' second hand lathes to sell them at a very competitive price, and with the guarantee that they have been reassembled step by step on our facilities. This machine has belonged to the same company since we delivered it on the 20th April 2011. The customer has replaced this lathe with a new lathe from the CMZ brand, the TA-20-YS model. This CNC lathe was collected by CMZ on the 10th June 2020.

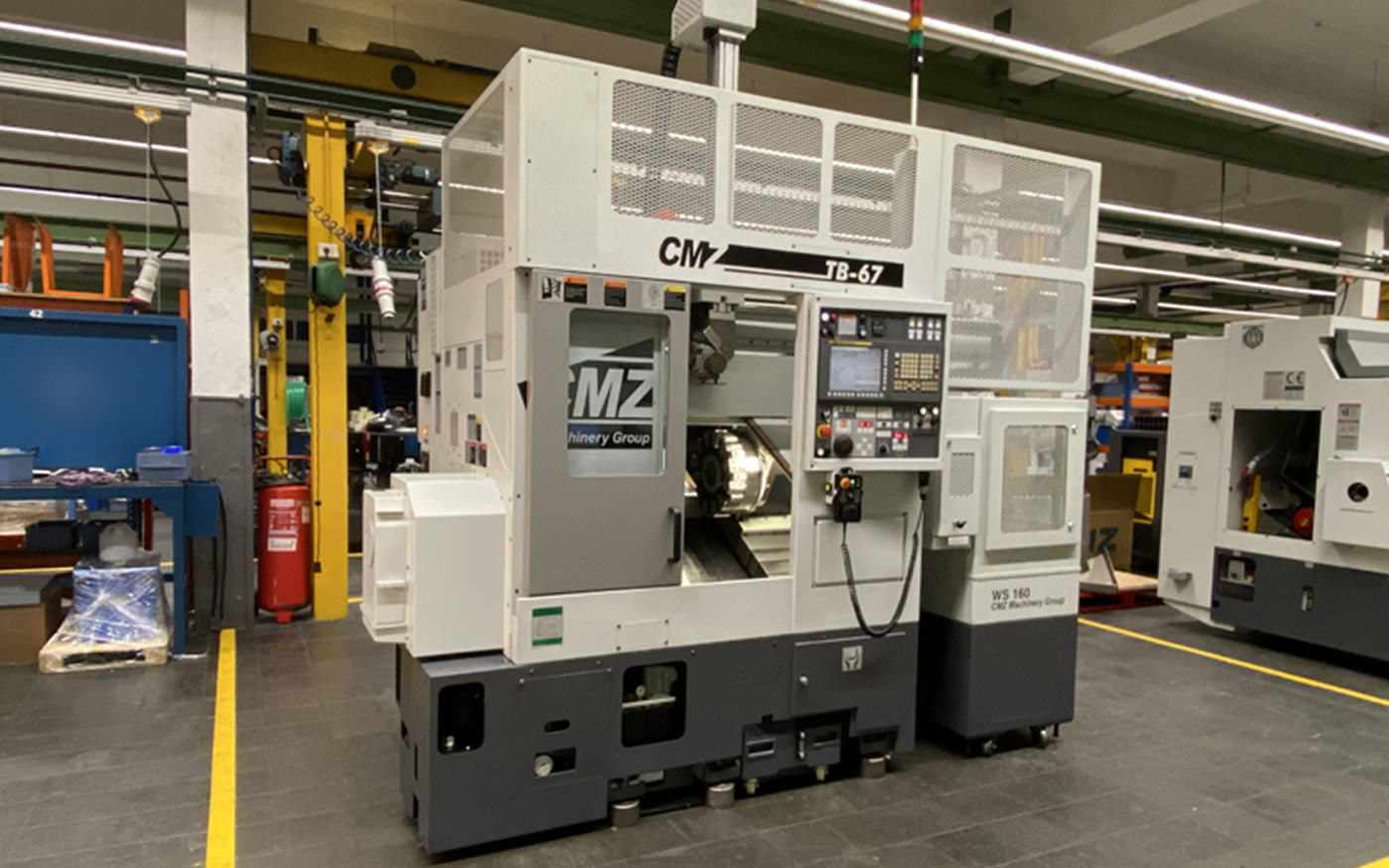

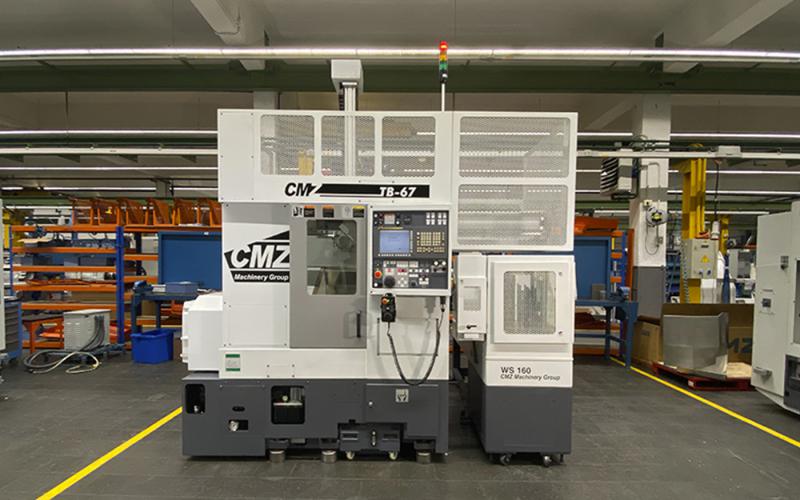

Machine finished. Front view.

Machine finished

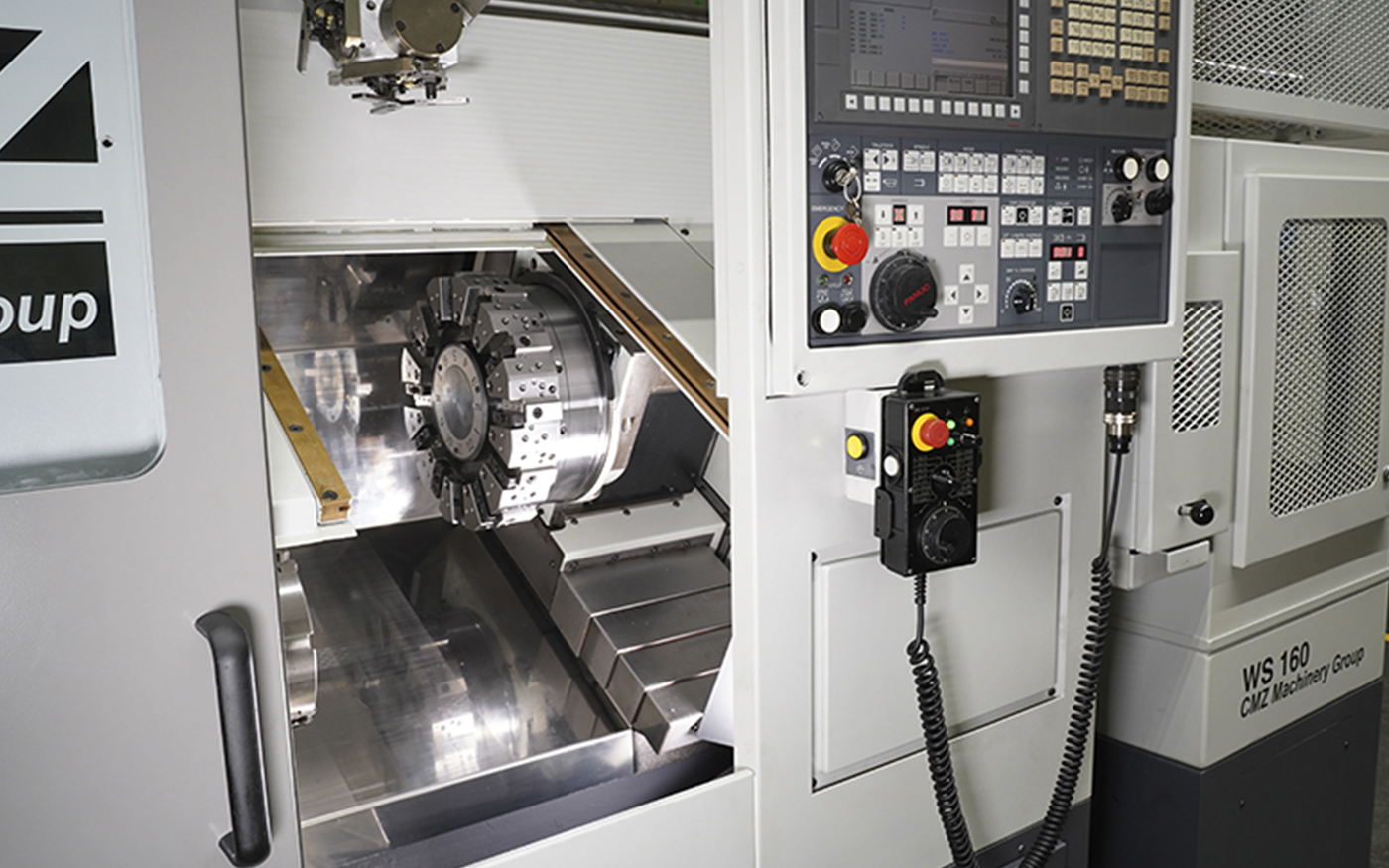

Machine finished. Detail of the turret.

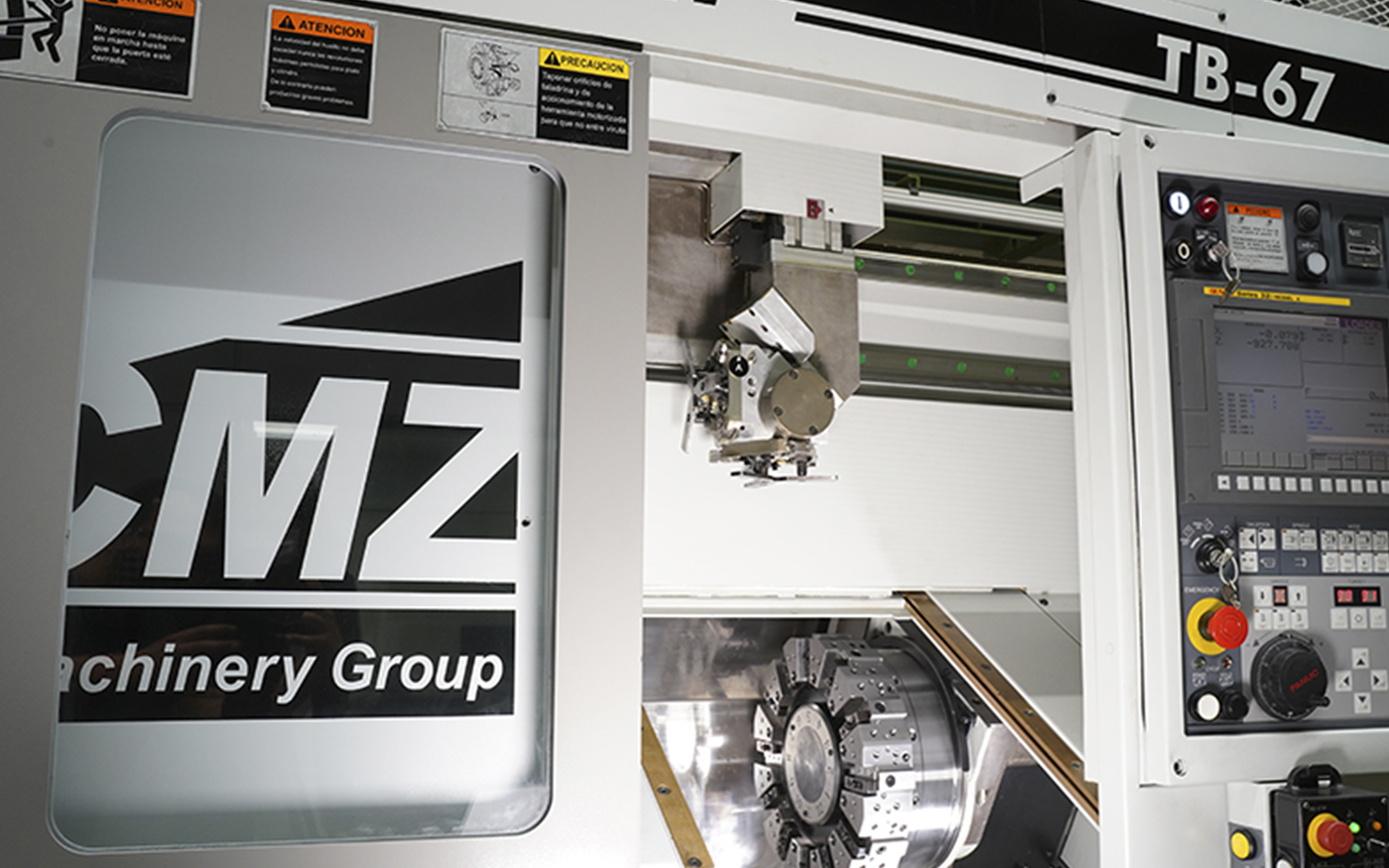

Machine finished. GL6

Close-up of FANUC 32iT

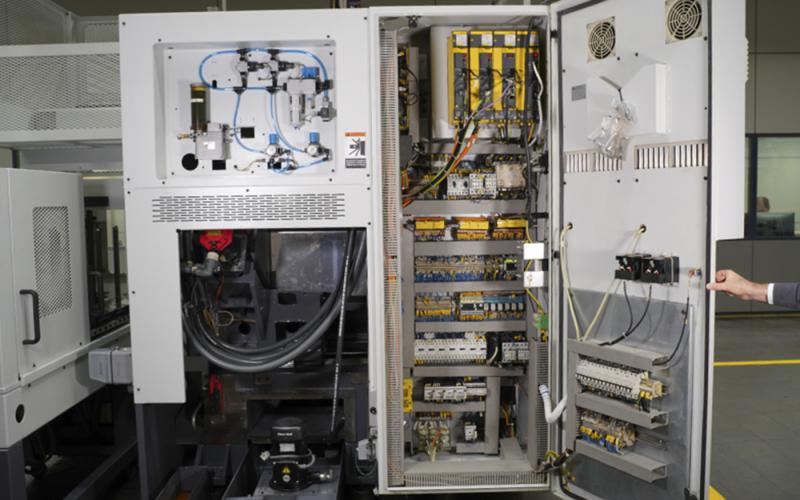

Machine finished. Close-up of the electrical cabinets

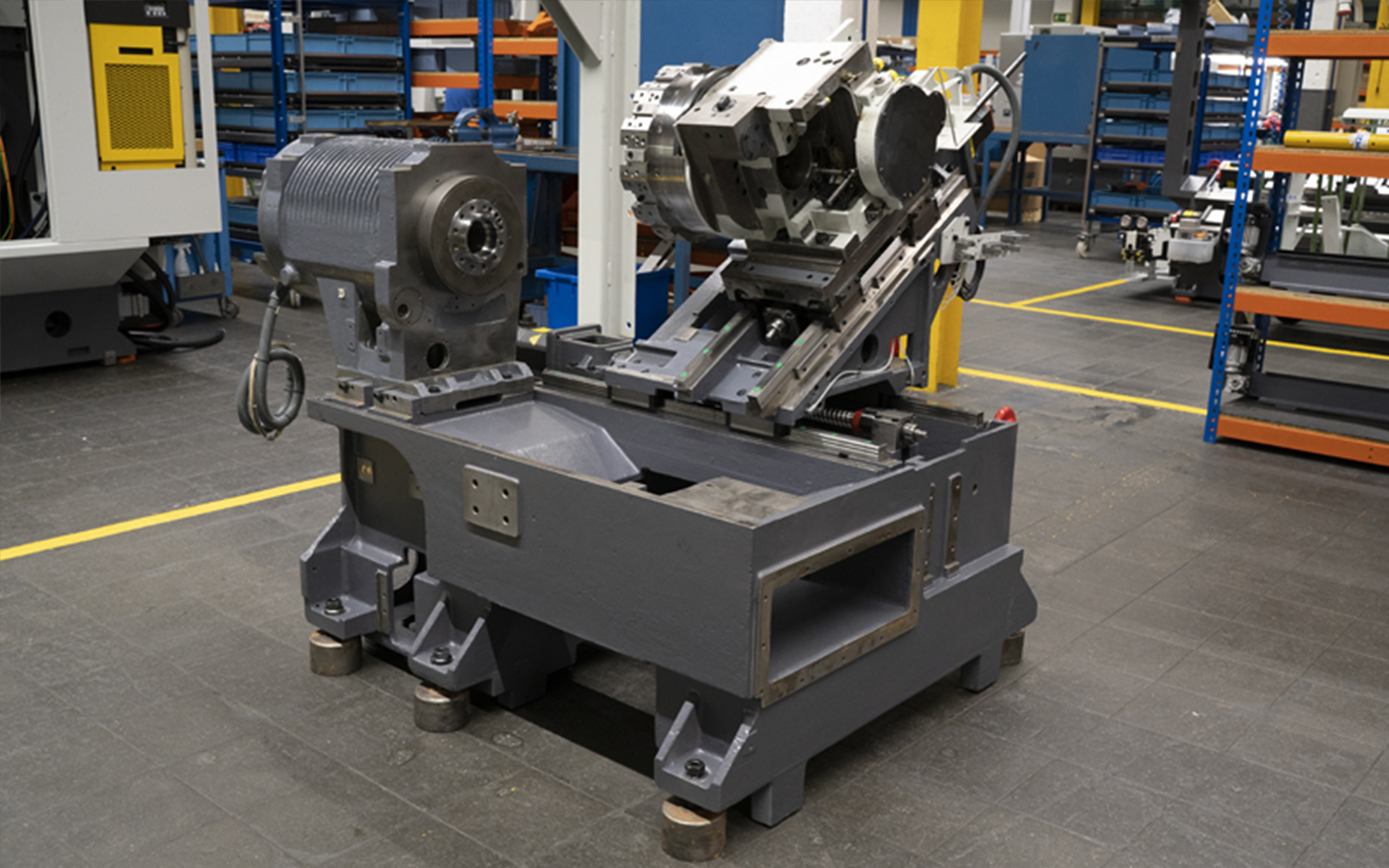

Bed with turret and spindle mounted

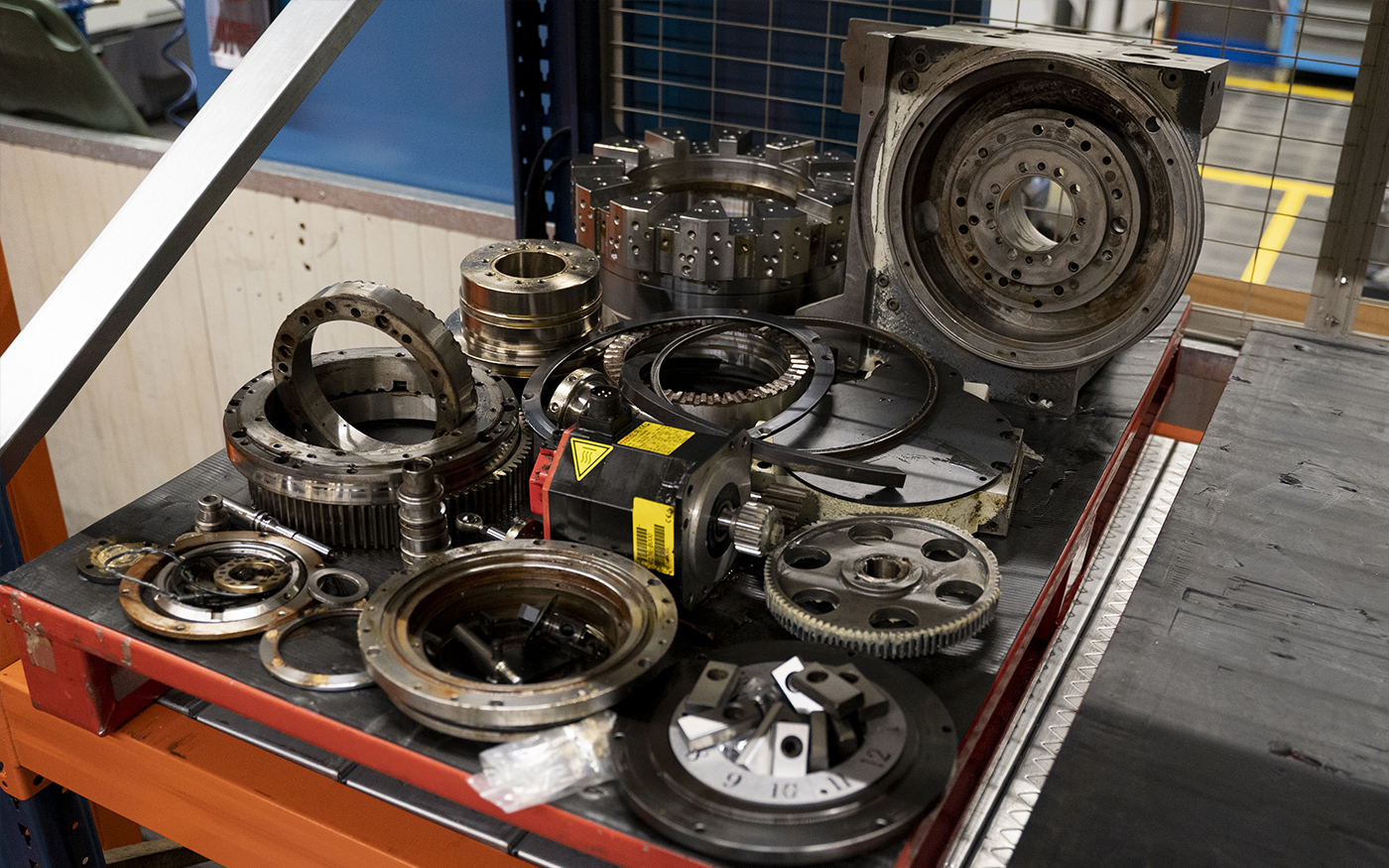

Turret disassembled before repair

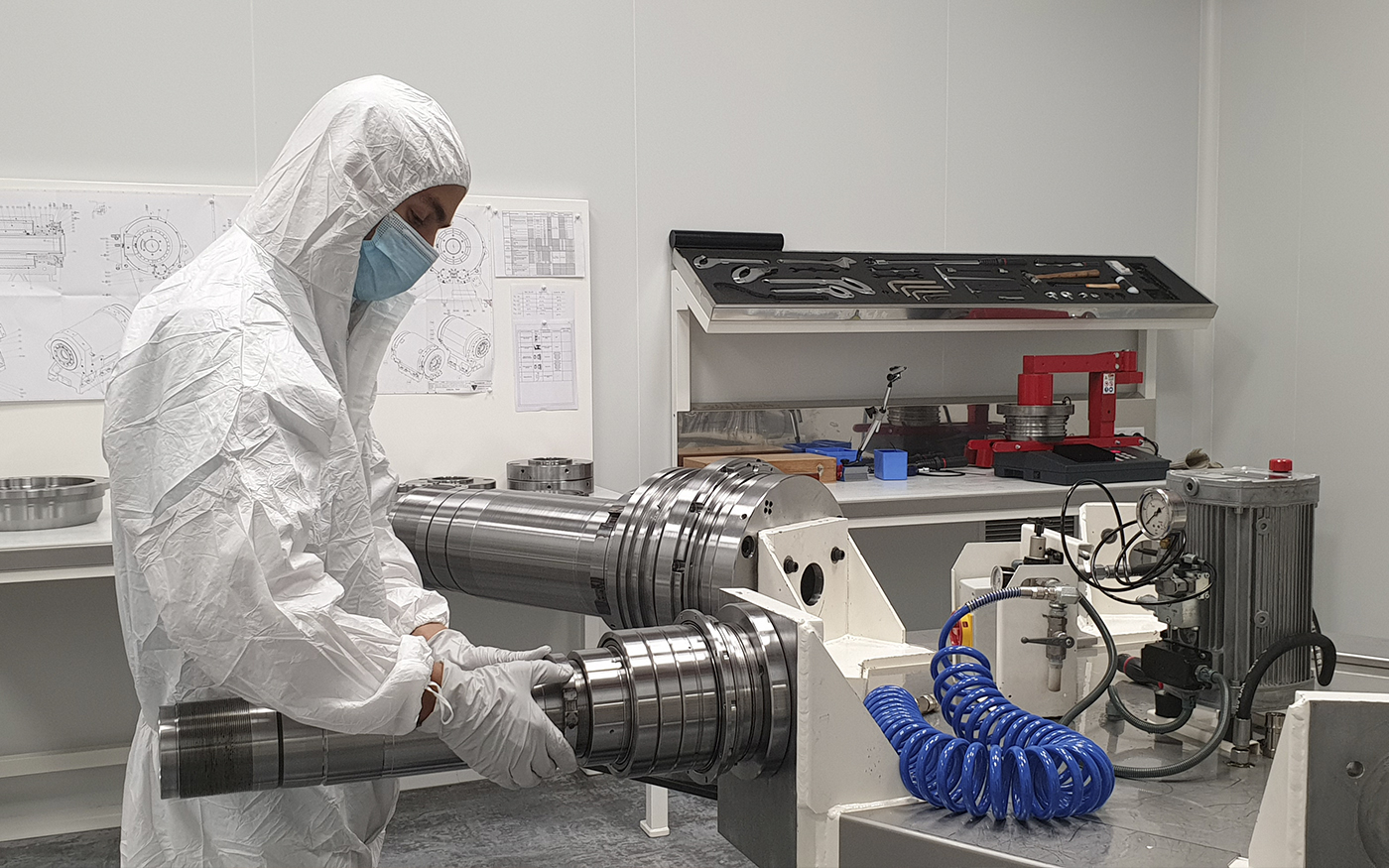

Spindle repaired with new bearings

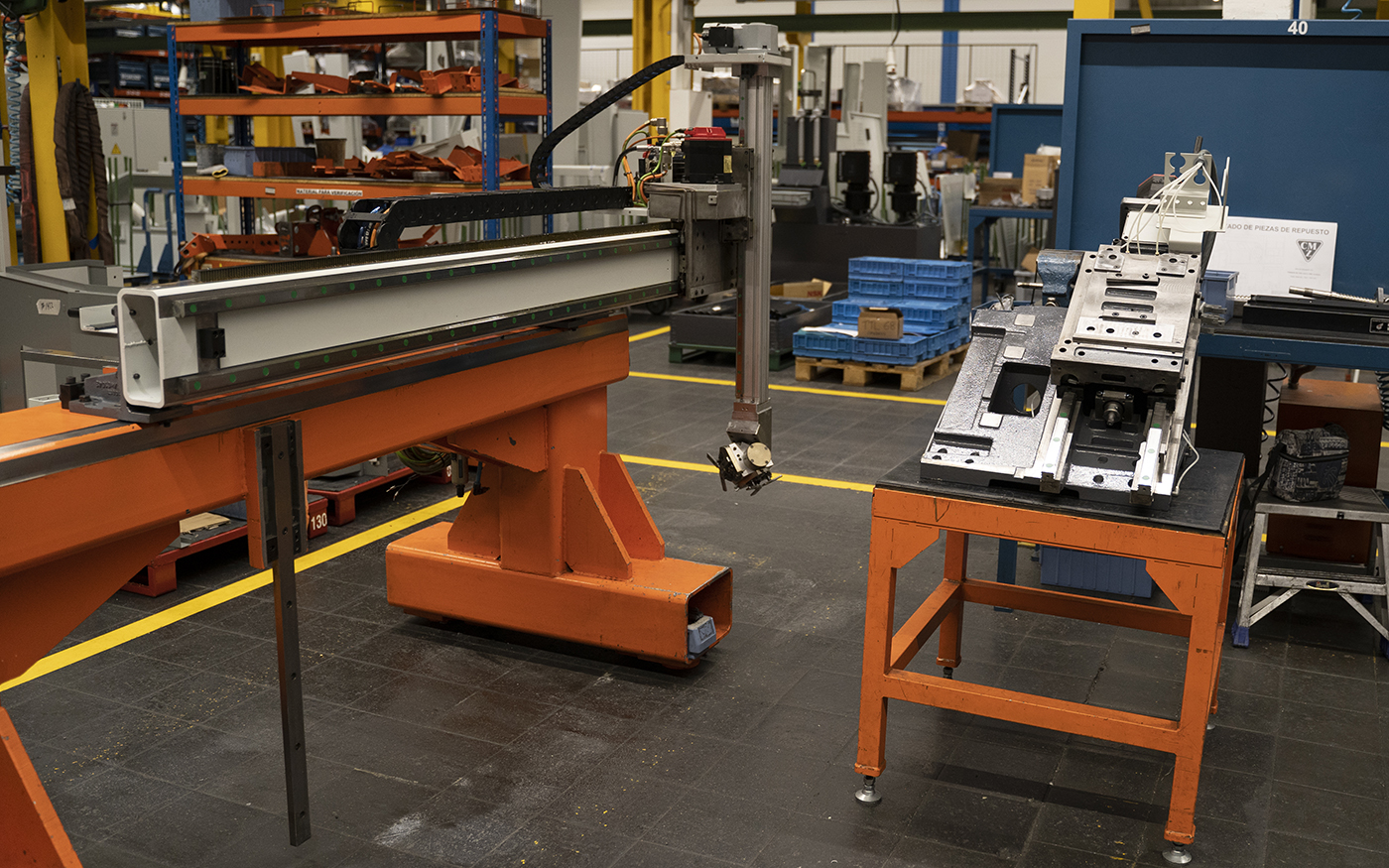

Robot and carriages reassembled and prepared for mounting on the machine

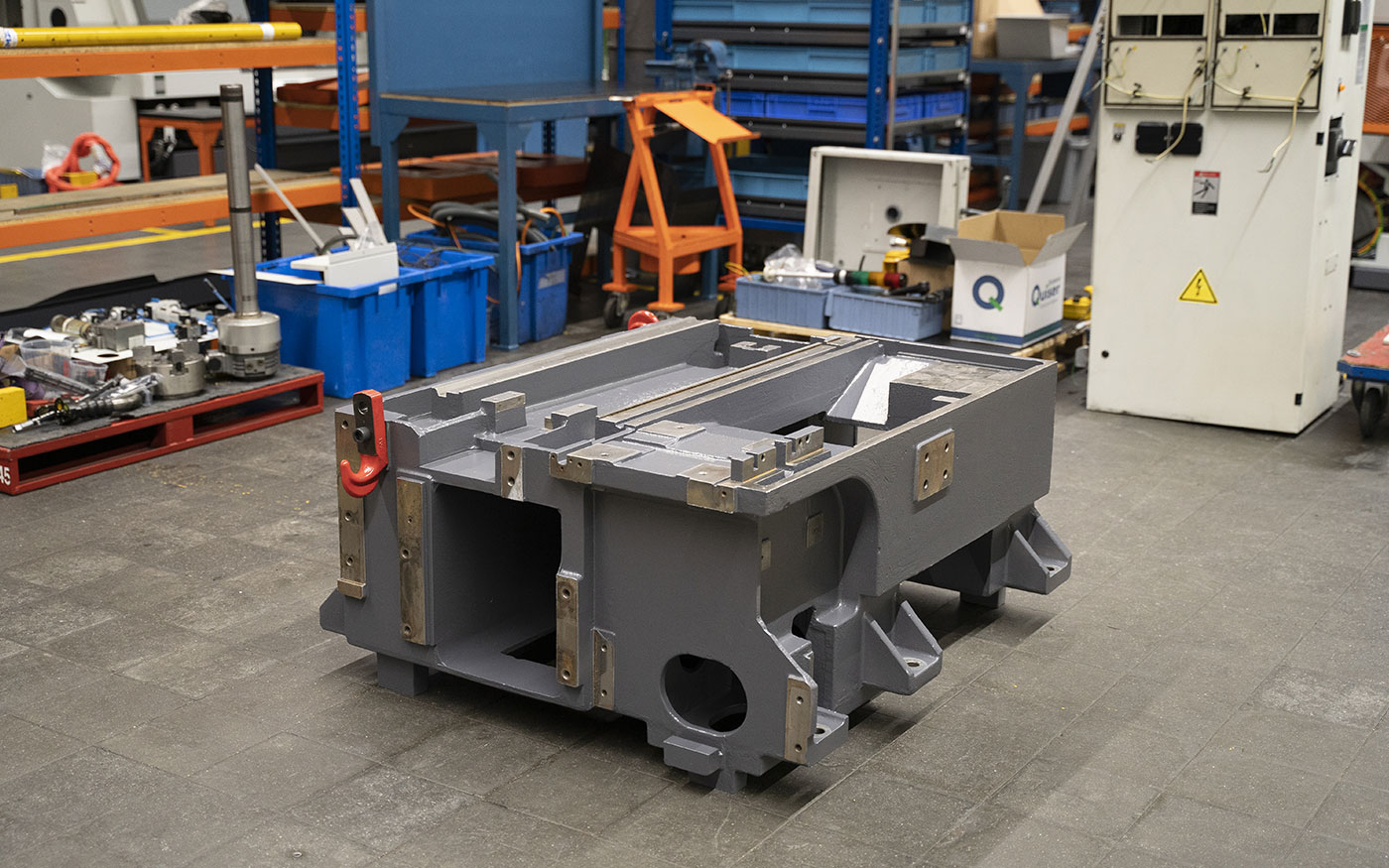

Bed disassembled

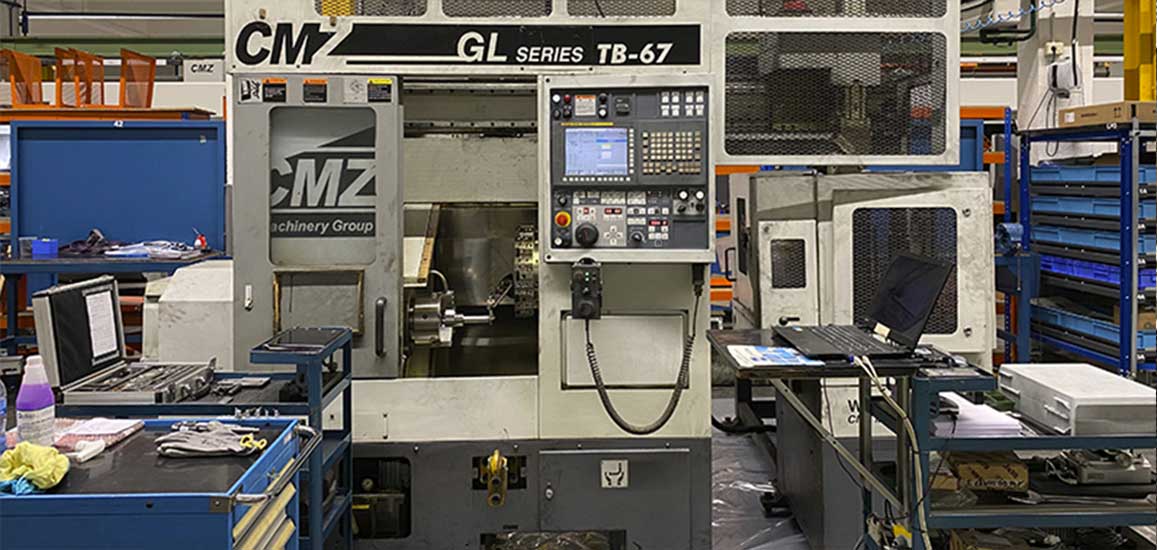

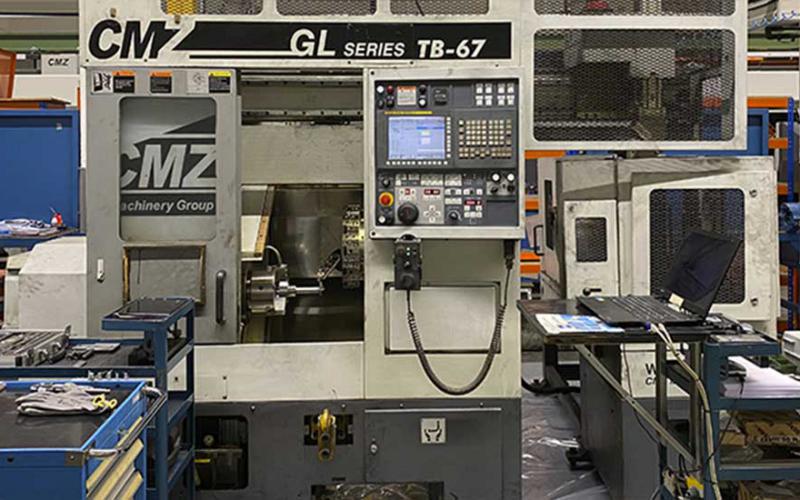

Checking before dismantling

HIGHLIGHTS

  • TB-67+GL6 nº354 with FANUC 32iT control.
  • Date of manufacture 20th January 2011.
  • Plates: Spanish.
  • Autoblok chuck, model BBD 210.
  • Standard 12-position servo turret.
  • WITHOUT Tailstock.
  • 6 bar cutting fluid pump.
  • Manual guide i.
  • Presetter.
  • Rear chip conveyor.
  • Stoplight.
  • Tool life management.
  • Cutting force monitoring.
  • Fitted with NEW toolholder comprised of:
    • 3xTL15/10000/09 INTERNAL TOOLHOLDER Ø40.
    • 1xTL15/10000/12 INTERNAL TOOLHOLDER Ø40 WITH INTERNAL REFRIGERATION.
    • 1xTL15/10000/18 TOOLHOLDER SLEEVE Ø EXT40 Ø INT20.
    • 1xTL15/10000/19 TOOLHOLDER SLEEVE Ø EXT40 Ø INT25.
    • 1xTL15/10000/20 TOOLHOLDER SLEEVE Ø EXT40 Ø INT32.
    • 1xTL15/10000/25 TOOLHOLDER SLEEVE Ø EXT40 Ø INT MORSE TAPER 2.
    • 1xTL15/10000/26 TOOLHOLDER SLEEVE Ø EXT40 Ø INT MORSE TAPER 3.
    • 1xTL15/10000/34 TOOLHOLDER SLEEVE Ø EXT40 Ø INT20 FOR TOOLHOLDERS WITH INTERNAL REFRIGERATION.
    • 12xTL15/10058 COOLING JET GUIDE.
    • 12xTL15/10077 TIGHTENING RULE.
    • 12xTL15/10078 WEDGE.
