TURNING CENTRE FOR HIGH PRODUCTION
TURNING CENTRE FOR HIGH PRODUCTION

TTL SERIES

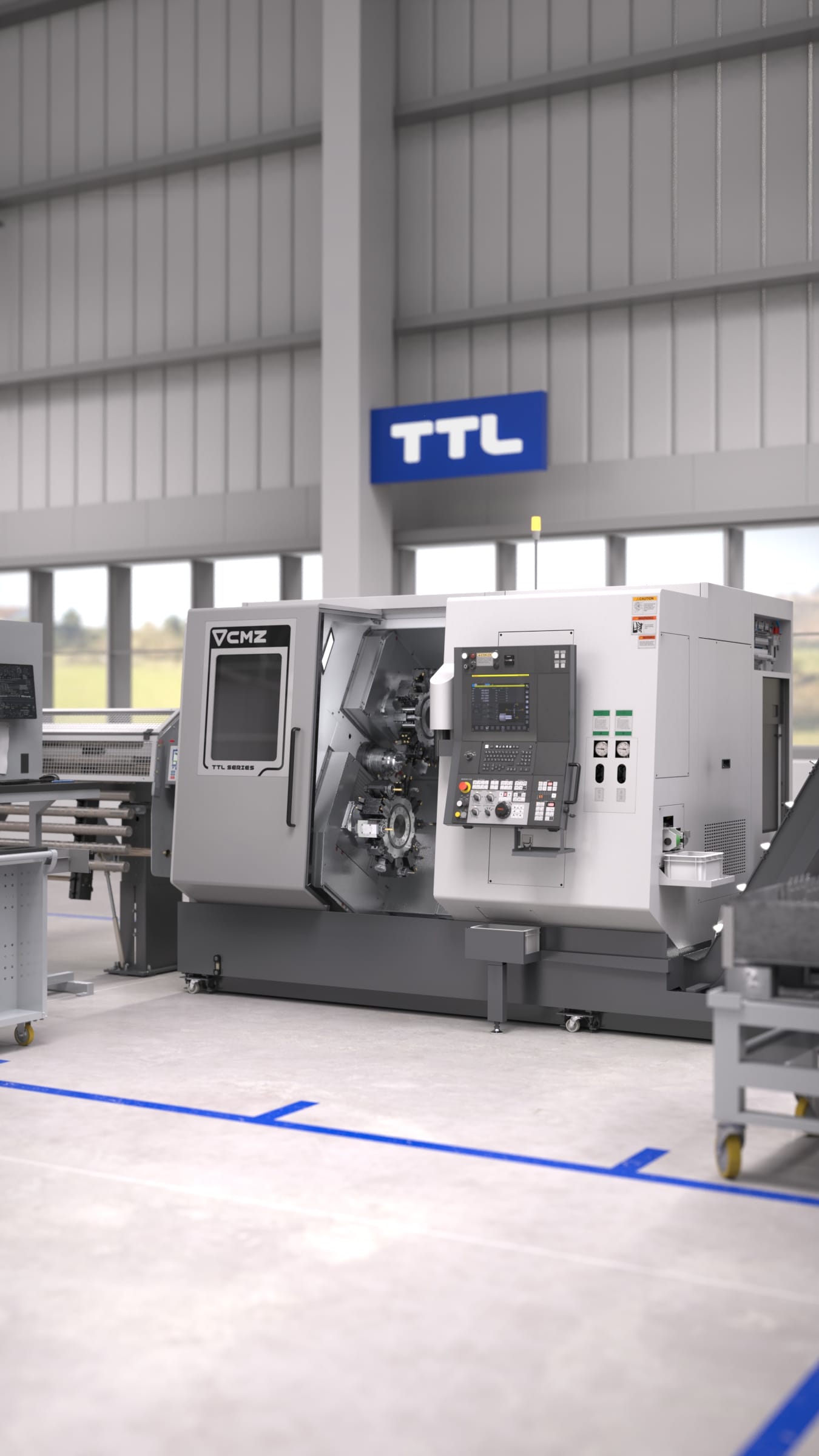

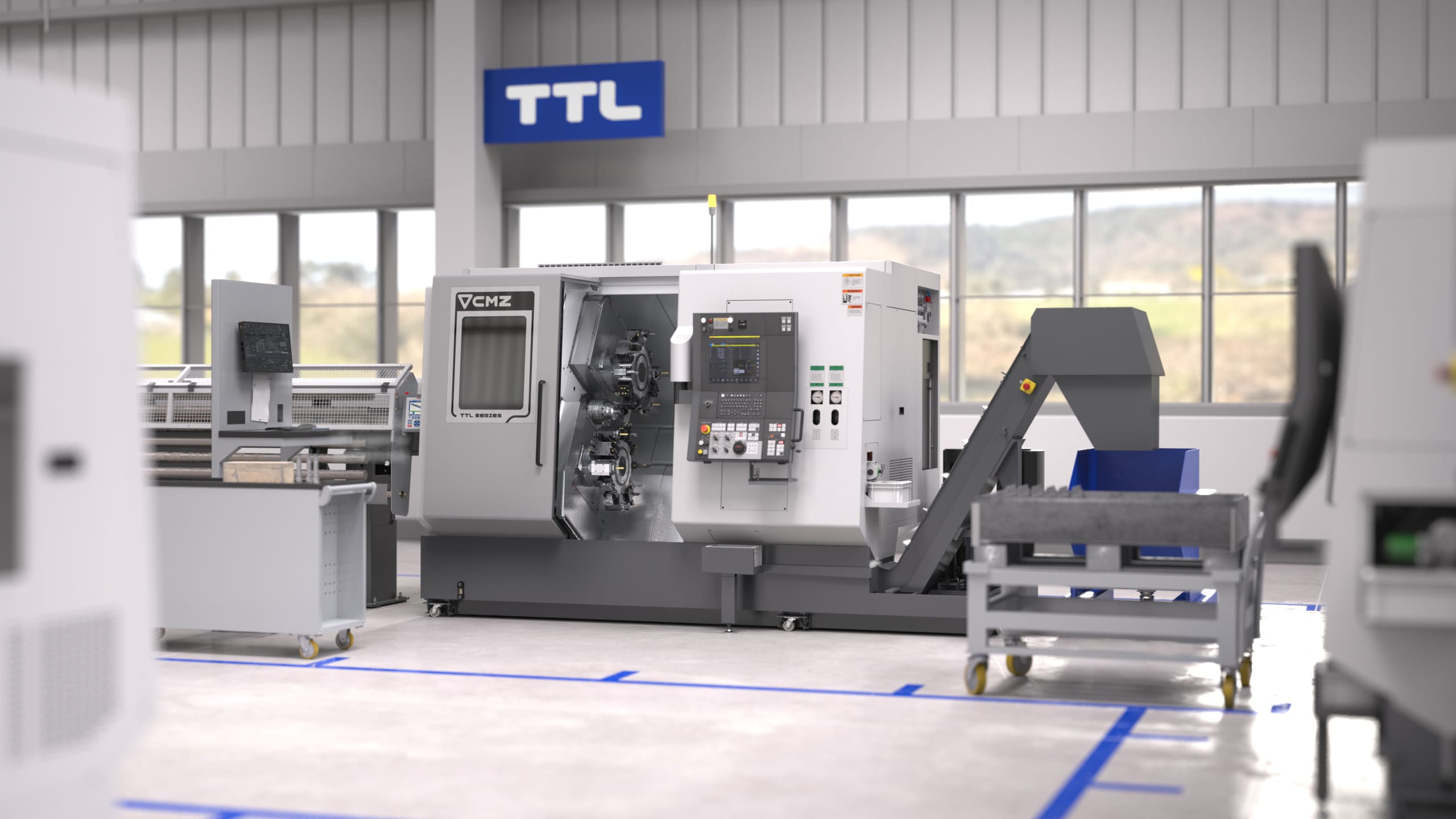

TURNING CENTRE FOR HIGH PRODUCTION

Precision turning companies work with very high volumes, tight lead times and very high precision. The high precision turning centre in the TTL Series is the largest machine in CMZ’s range of multi-turret machines. Especially indicated for machining complex parts, the TTL is a beltless turning centre with 8 integrated motors. Its motorised turret is oil cooled and the spindles reduce acceleration time by half. Movements in the X3 and Z3 axes permit unique functionalities:

  • Tailstock (optional), enabling machining between the main spindle and tailstock while machining continues as normal in the sub-spindle.
  • Work with 3 tools at a time (Superimposed machining).
  • Machine longer parts: the large X3 axis travel moves the sub-spindle body away from centre line to reduce interferences.

The TTL Series is undoubtedly the best option for anyone looking for a high performance turning centre with maximum precision.

BELTLESS TURNING CENTRE

8 INTEGRATED MOTORS

The TTL Series is part of CMZ's range of turning centres for high volume production. With 8 integral built-in motors , this lathe is characterised by its high levels of precision and reliability. The design improves the quality of surface finishes, and achieves faster acceleration, resulting in quicker cycle times.

14 kW, 42 Nm, 12000 rpm

FULLY OIL-COOLED DRIVEN TOOL TURRET

24-position hydraulically clamped turrets. In our TTL series of turning centres, clamping is achieved with large diameter curvic coupling crowns which provide great stability and accuracy. The turret in this turning centre has two motors. The first is used to index the disc on the turret (indexes 30º in 150 ms). The second is an integrated motor that delivers 14 kW 42 Nm and 12000 rpm to the driven tools. The entire turret is oil-cooled to enable continuous working at 12,000 rpm.

Icono refrigeración
Oil cooled
Icono indexación
Indexes 30º in 170 ms
Icono potencia
12,000 rpm
Icono posiciones
24 positions
Icono refrigeración
Oil cooled
Icono indexación
Indexes 30º in 170 ms
Icono potencia
12,000 rpm
Icono posiciones
24 positions

SYNCHRONOUS SPINDLES

REDUCE ACCELERATION AND DECELERATION TIME BY HALF

Discover all the features of this turning centre. These are some of the characteristics of the spindles on this high precision CNC lathe:

  • Equipped with synchronous motors with high power and torque (35.5 kW and 205 Nm). They reduce acceleration and deceleration time by half (TTL-52 accelerates to 4,500 rpm in 1.3 seconds).
  • The rotor on the synchronous motor has permanent magnets. That means there is no passing current and the spindle axis remains cold.
  • Both the integrated synchronous motor and the bearings are oil-cooled and provide excellent thermal stability.
  • The bearings assembled in the spindle are roller bearings and they provide shock robustness and high vibration damping.
Icono rodamientos
Roller bearings
Icono refrigeración
Oil cooled
Icono motor síncrono
Synchronous motor
Icono potencia
4,500 rpm in 1.73 seconds
Icono rodamientos
Roller bearings
Icono refrigeración
Oil cooled
Icono motor síncrono
Synchronous motor
Icono potencia
4,500 rpm in 1.73 seconds

FUNCTIONALITIES

Discover the exclusive functionalities of this turning centre thanks to the movements on the X3 and Z3 axes

TTL tailstock

Simultaneous work with tailstock and sub-spindle

This turning centre has the option of adding a tailstock attached to the sub-spindle body. That arrangement enables machining between main spindle and tailstock while machining continues as normal in the sub-spindle, as shown in the photograph.

TTL

Superimposed machining with 3 tools simultaneously

The TTL turning centre has two turrets, but the CNC has 3 programming channels for executing 3 programs simultaneously, each of them with their own offsets. The sub-spindle (X3 and Z3 axes) can work in channel three of the CNC in a compound manner with both the upper and lower turret. That is to say, for Superimposed machining with three simultaneous tools, each tool can be placed in each turret (upper and lower).

MACHINE LONGER PARTS

The X3 travel of the sub-spindle body, away from centre line, reduces interferences

TTL SERIES VS OTHER TURNING CENTRES

AUTOMATION

AUTOMATE SHORT AND LONG BATCHES

ROBOT GL 20 II

CMZ’s Gantry loader GL 20II offers infinite automation solutions. With this Gantry Loader you can automate short and long batch runs. Its conversational programming system makes both handling and programming very easy. In addition, in order to maximise autonomy time, we have a wide variety of workstockers with large parts storage.

Here you can see our turning centre in the TTL Series equipped with a gantry loader Incorporating a gantry loader in your turning centre provides operators with great autonomy because part unloading can be automated. Unloading the finished part from the sub-spindle with our gantry GL2011 system means the turrets can continue working on the main spindle (reducing cycle time) and the finished part can be stacked individually avoiding contact.

Turning centre + Gantry Loader

TTL Series: Another Dimension

COMPARISON OF HIGH PRECISION LATHES

Which is the best turning centre for you?

TTL CMZ

TTL Series

Turning centre

Discover this turning centre for high production. Next generation of 3 axis CNC machines. Multi-turret lathes.

  • ø52 and ø66 Maximum bar diameter
  • 35Kw 205Nm Spindles
  • 220 mm ø Max. turning diameter
  • 800 mm Distance between centre of spindles
  • 2 Turrets and 3 channels* *3 tools work simultaneously
  • 1 Turret and 2 Channels* *2 tools work simultaneously
  • Gantry Robot
  • Tailstock
  • With or withour Driven Tool (turrets)
  • With or whitout Y axis in any turret
+ Info
TTS CMZ

TTS Series

Dual-spindle CNC lathes

This Twin CNC Lathe for bar turning completes the TT range. It is the shortened version of TTL. It is designed for turning small parts and competes with sliding head lathes.

  • ø38, ø46, ø52 and ø66 Maximum bar diameter
  • 17Kw 66Nm Spindles
  • 120 mm ø Max. turning diameter
  • 638 mm Distance between centre of spindles
  • 2 Turrets and 3 channels* *3 tools work simultaneously
  • 1 Turret and 2 Channels* *2 tools work simultaneously
  • Gantry Robot
  • Tailstock
  • With or withour Driven Tool (turrets)
  • With or whitout Y axis in any turret
+ Info

APPLICATIONS

Superimposed thread cutting

This powerful 66mm bar capacity twin turret twin spindle CNC lathe can cut with 3 or even 4 tools simultaneously making the TTL a great machine for producing higher volumes of complex parts. Superimposed...
PROGRAMMING MILLING OPERATIONS IN A CNC LATHE

CNC Milling

WHAT IS MILLING? Milling is a chip removal manufacturing method that mainly consists of cutting material using a multi-edge rotary tool. Performing milling operations on a CNC lathe allows the spindle's...
Applications Demo

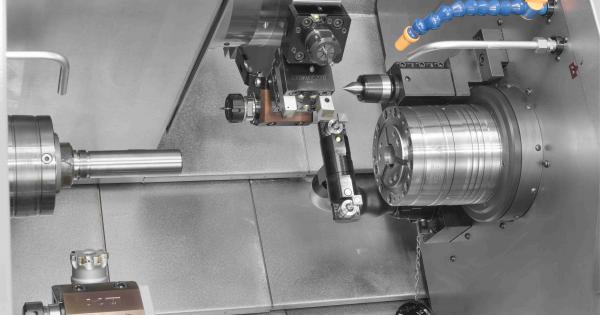

TTL Series | Applications Demo

CMZ presents their new CNC lathe series TTL.  This a new generation of lathe that can be included in the multiturret range together with the TX series. Its rapid speed of 30m/min, milling capacity up...
Working with a tailstock

Working with tailstock

With this configuration, customers can machine parts in the main-spindle with the tailstock engaged using the upper turret, while simultaneously machining parts in the sub-spindle with the lower turret....

EXAMPLES OF MACHINING

Tapa

Hood

Casquillo

Bushing

Eje de transmisión

Drive shaft

Eje de transmisión

Drive shaft

Cuerpo de portaherramientas

Toolholder body

Cuerpo de portaherramientas

Toolholder body
