Sold Out TX-52 Y3 CMZ
  • Machine with 3 turrets, all with Y axis
  • Used lathe in very good condition
  • Fully disassembled and reconstructed

TX-52-Y3 nº78

DISASSEMBLED AND RECONSTRUCTED ON OUR FACILITIES

Used multi-turret lathe fully disassembled and reconstructed by CMZ The machine has been operational since November 2012 until June 2020, when it arrived on our premises. The customer has replaced this lathe with a new lathe from the CMZ brand, the TTL-52-Y2 model. Very good purchase opportunity. It is difficult to find a used machine in such good condition and at as competitive a price as the one we can offer you.

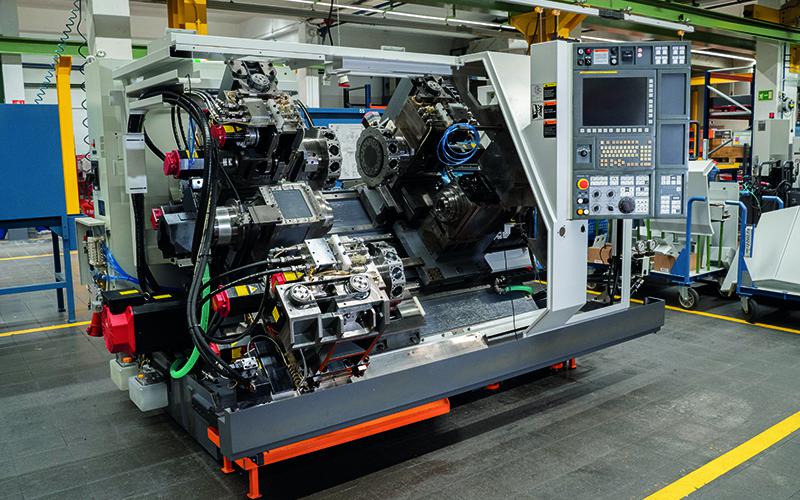

Mechanical part of the machine completely rebuilt

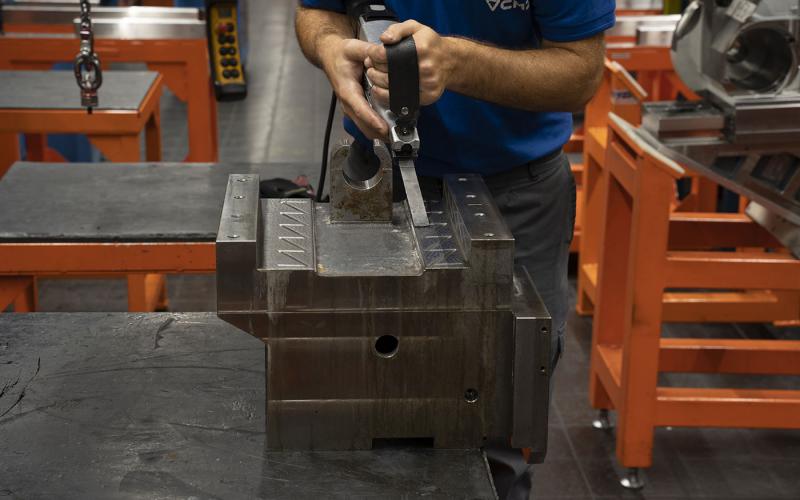

Carriages disassembled, scraped down and newly adjusted.

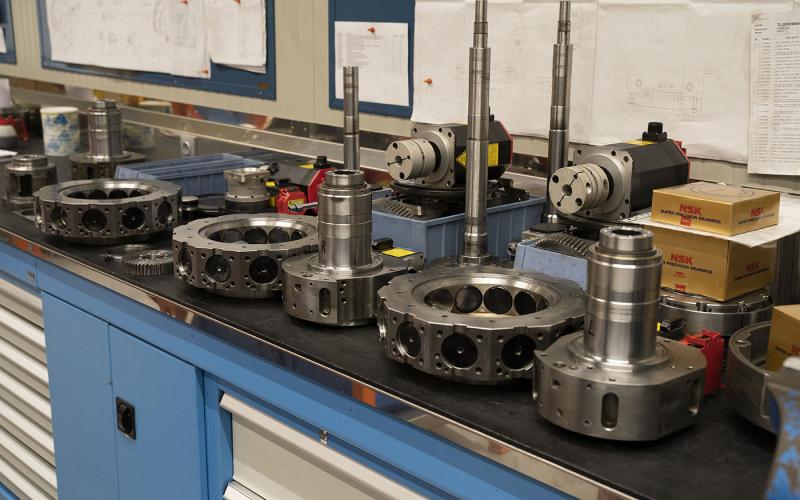

Turrets dismantled and ready for reassembly

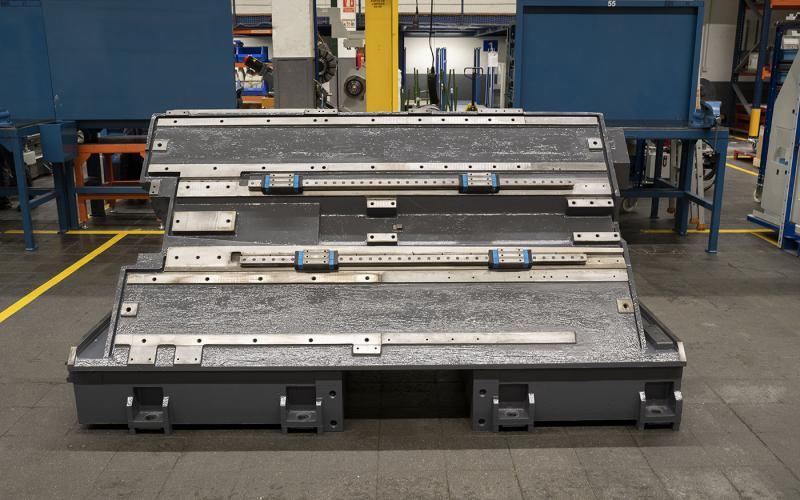

Disassembling the machine to reconstruct it

HIGHLIGHTS

  • Second hand lathe: TX-52-Y3/FANUC 31i-B no. 78.
  • Date of manufacture: 22/10/2012
  • TOPlus Combi 52 AXFIX clamping head, ref 2903/0012, on the left-hand headstock
  • TOPlus Combi 52 AXFIX clamping head, ref 2903/0012, on the right-hand headstock
  • Tool presseter
  • Servo parts catcher.
  • High Pressure Coolant - Knoll KF-200-700 (7.5kW, 50bar, 47l/min)
  • Coolant wash gun
  • Manual guide i.
  • Side exit chip conveyor
  • LPS on both headstocks
  • Pneumatic parts ejector for subspindle with adjustable stroke of 100mm and coolant through
  • UniMag interface.
  • Air jet on spindle and subspindle.
  • Tool life management.
  • Tool consumption monitoring.
