Interested in learning more about automation of loading clamping fixtures? In this video, we show you how.

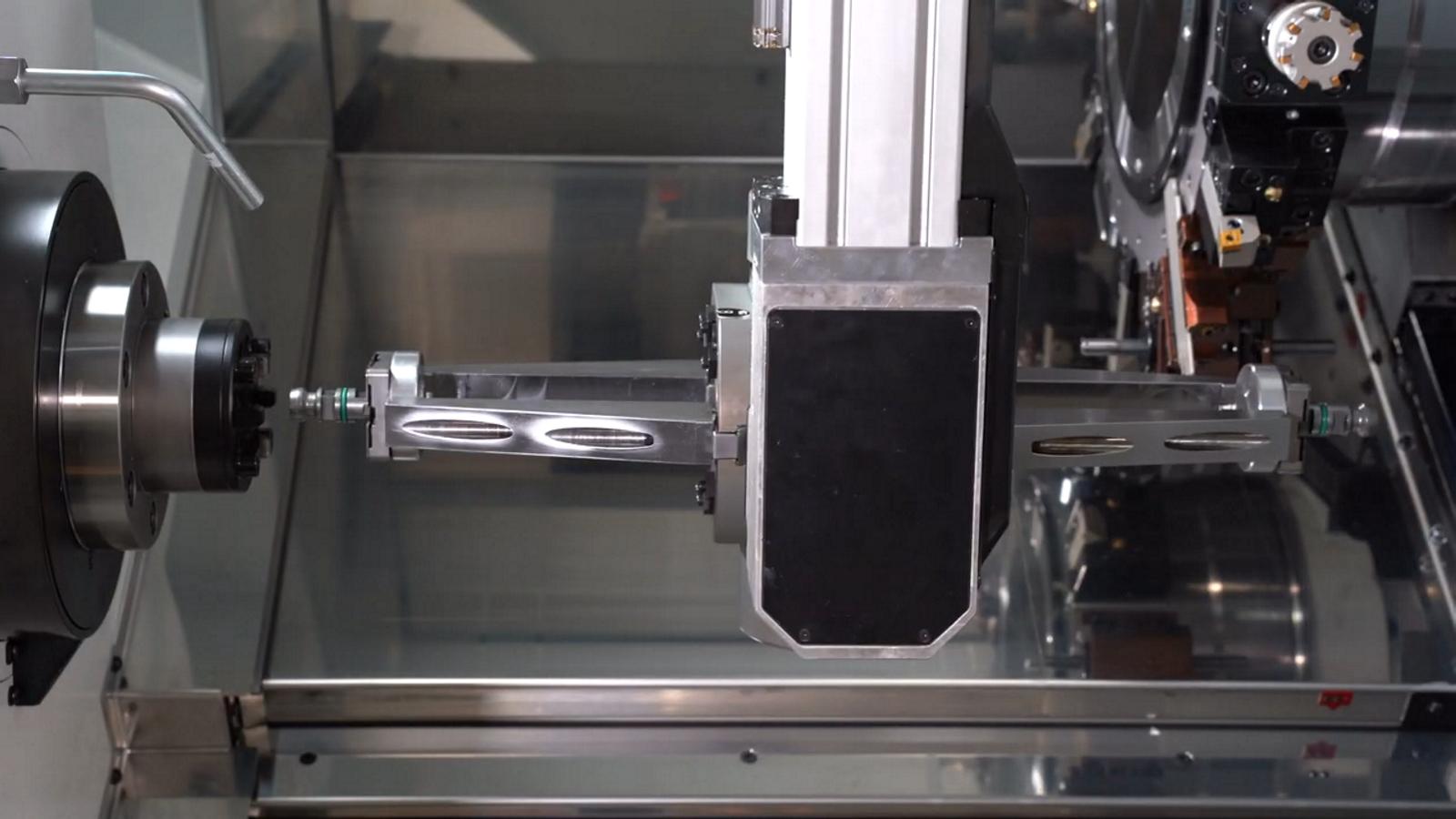

Manufacturing processes usually require different type of machines to finish a component. In order to ease the movement between machines and ensure precision, clamping fixtures can be used. CMZ has developed an automated process to load components mounted in clamping fixtures in a CMZ TA series CNC lathe. The fixtures with the raw parts are mounted in pallets in one half of the compact WS700. A gantry system loads the parts into an interface mounted on the spindle that matches the fixtures. Finally, the Gantry Loader leaves the finished part in the other half of the workstocker.
Additional information
-
Automation
Do you need to automate your production process to reduce idle time and improve yield? CMZ offers various possibilities for automation. The GL 20II Gantry Loader has been designed by CMZ to automate short and long batches and increase the productivity of the CNC lathe. The gripper heads with capacity…
-
Gantry Used as Part Catcher
This system is not limited to billets, CMZ manufacture gripper heads and workstockers both for billets and shafts. The combination of a barfeeder and Gantry Loader can be a very effective way to manage larger quantities of finished components. In this video, we show the process of a finished component…
-
Automation of machining shafts
A solution to automate the process of machining shafts in your CNC lathe. Our GL20II gantry loader system combined with the WS700 workstocker for shafts allows you to leave you machines running unmanned. You can have several parts in each line up to 700mm. Controlling the robot is very easy and you…
-
Indexing Chuck
Normally several clampings would be needed to finish the parts, or in some cases very specific transfer machines could also be used, but the investment would be much higher. To allow this indexation and be able to machine the part completely in one clamping indexing chucks are the best solution. Not only…
